SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Name: SSMA Male RF Coaxial Connector Compatible with RG316U Cable
Brand: SIPU
Price: 1 USD

China SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-J3

Certification : IOS9001-2017, RoHS, CE

Packaging Details : master carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 1000000pcs/year

Product name : SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Durability : 500 times

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Contact Now

SSMA Male RF Coaxial Connector – Compatible with RG316/U Cable

Product Overview

The SSMA series connector is a miniaturized version of the SMA series, offering compact size, wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. It is compliant with IEC 60169-18 standards and widely used in microwave equipment and digital communication systems.

Applications:
Base stations, test instruments, electronic components, telecommunication systems, and other RF applications.

Product Features:
Designed for use with RG316/U coaxial cable, this connector features a lightweight and compact design, outstanding mechanical and electrical properties, and a highly reliable connection—ideal for space-constrained, high-performance RF environments.

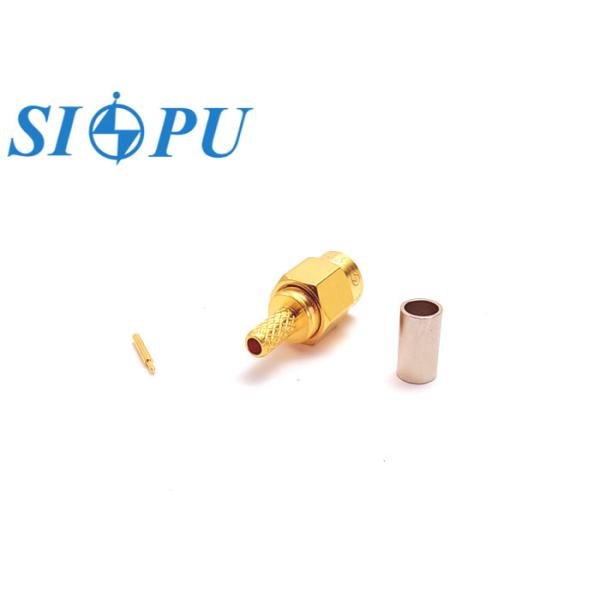

Product Appearance

Important Technical Parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-30GHz
Dielectric withstanding voltage		750V	VSWR	≤1.05+0.012F(GHz)
Insulation resistan		≥1000MΩ	Insertion loss	≤0.05√F(GHz)dB
Contact resistance	Center conductor	≤4.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

Sealing ring

Silicon rubber

Product Image Gallery
