SMA Female RF Coaxial Connector – Slotted, Flange Mount Socket

Name: SMA Female RF Coaxial Connector Slotted Flange Mount Socket
Brand: SIPU
Price: 1 USD

China SMA Female RF Coaxial Connector – Slotted, Flange Mount Socket wholesale

Brand Name : SIPU

Model Number : SMA-KFD891G

Certification : ISO9001-2017, RoHS, CE

Place of Origin : China

MOQ : 50

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/yesr

Delivery Time : 6-8Weeks

Packaging Details : master carton

Product name : SMA Female RF Coaxial Connector – Slotted, Flange Mount Socket

Gender : Female

Type : Straight

Material : Stainless steel

Plating : Passivation

Durability : 500 times

Contact Now

SMA Female RF Coaxial Connector – Slotted, Flange Mount Socket

Product Overview

The SMA series is among the most widely used RF connector types due to its small size, wide frequency bandwidth, and superior mechanical and electrical performance. This 4-hole flange mount version is engineered for reliability in high-vibration and harsh environments, making it ideal for mission-critical systems.

Applications

Aerospace & aviation systems

5G base stations

Precision instrumentation and meters

Automotive and marine electronics

Military and communication infrastructure

Product Features

4-hole flange mount for secure panel installation

Stainless steel housing ensures high strength, corrosion resistance, and thermal stability

Slotted inner conductor (0.5 mm wide, 1.5 mm deep) provides elastic contact, reducing resistance and insertion loss

Uniform point mortise structure enhances grounding and signal integrity

Operates reliably in environments with shock, vibration, and extreme temperatures

Complies with global SMA standards for full interchangeability

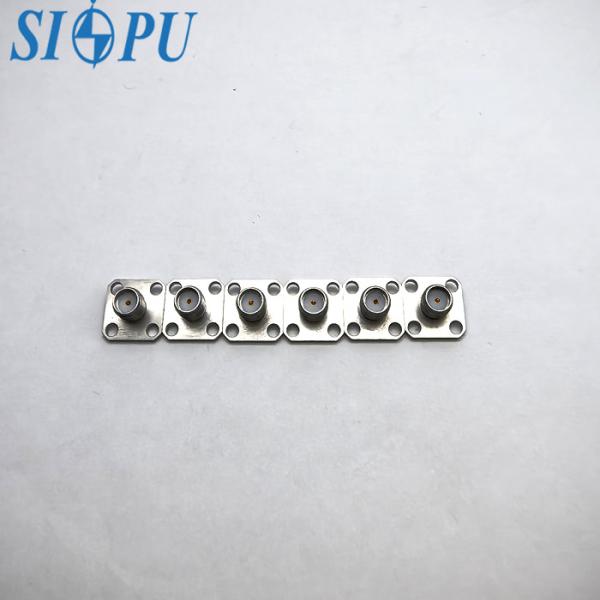

Product Appearance

Important Technical Parameters

Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHZ)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500 times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Stainless steel, passivating

Product Image Gallery
